XT-AVS Extend Video + Audio over CAT5
XT-AV - Transmitter and Receiver to extend Video + Audio over CAT5 up to 1,000 feet. Includes power supplies.
This product features a 3.5mm for audio and an HD15 (VGA) connector for the video input/output and you can send the following video signals:
Features:
Applications:
Specifications:
This is an example of what a setup would look like.
Order Information
Availability: ships same day.
This product features a 3.5mm for audio and an HD15 (VGA) connector for the video input/output and you can send the following video signals:
- VGA up to 1900x1200 resolution
- RGBHV
- RGBs
- YUV
- S-Video (aka Y/C) - you can send two S-Video signals*
- Composite video - you can send five composite video signals* * Requires optional cable for S-Video and Composite Video
Features:
- Uses easy to install, inexpensive CAT-5/5e/6/7/8
- Each Output reaches up to 1,000 feet (300 m).
- Supports high resolution video up to 1900x1200.
- 300 MHz Bandwidth.
- Sends high-resolution VGA and Stereo Audio
- Compatible with VGA, XGA, Sun, MAC and SGI
- Sync Format / Polarity Preservation.
- Compatible with Line Level Stereo Audio Signals.
- High ground loop immunity.
- Built-in power surge and transient protection.
- Designated trimmer in the remote unit to compensate for cable length.
- Compact Metal Case Enclosure.
- External power supply
Applications:
- Presentations: The XT-AV series enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays.
- Data Broadcasting: Data such as news, stock prices, sports results, and flight information can be broadcast in real time to various monitors and/or speakers.
- Learning and Training: XT-AV can be used in educational presentations to multiple locations, in schools and in other training facilities.
Specifications:
| Video Data | |
| Format | RGBHV, RGsB, YUV, Y/C, CVBS |
| Resolution | Up to 1900 x 1200 VGA, SVGA, XGA, SXGA |
| Connector Type | High density HD15 |
| Audio | |
| Signal Type | Stereo unbalanced |
| Connector | 3.5mm jack socket |
| Power | |
| Requirements | 5VDC @.5A |
| Connector | 2.1mm DC jack (center +ve) |
| Mechanical | |
| Dimensions | 3.5 x 3.5 x 0.9* in. (90 x 90 x 23 mm.) * 1.0 in./ 26 mm. with pegs) |
| Weight | 0.6 lb. (0.2 kg.) |

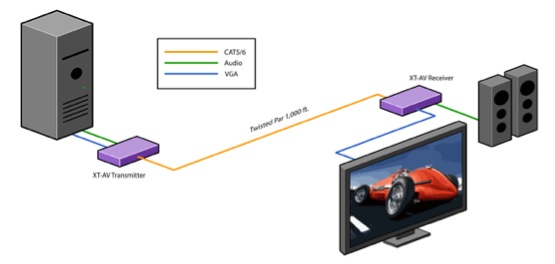

This is an example of what a setup would look like.
Order Information
|
Model#
|
Description
|
|
XTAVS
|
UXGA/Audio Point-to-Point CAT5 Extender. Includes: [XTA-TXS, XTA-RXS, (CCVGAMM06), & 2 X (PS5VD1A)]
|
| XTA-TXS | XTAV UXGA/Audio Point-to-Point CAT5 Transmitter. Includes:[ XTA-TX & (PS5VD1A)] |
| XTA-RXS | XTAV UXGA/Audio CAT5 Receiver. Includes: [XTA-RX & (PS5VD1A)] |
Availability: ships same day.
