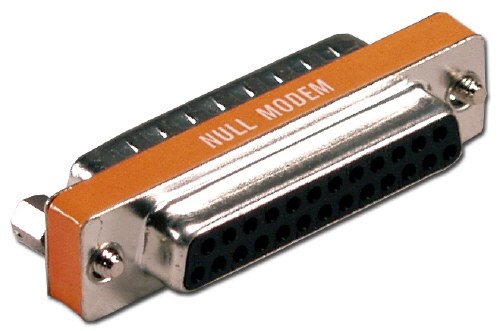

DB25 Male to Female RS232 Serial Null Modem Shielded Slim Adaptor

DB25 Male to Female RS232 Serial Null Modem Shielded Slim Adaptor
Item# CC337MFS-SP
$15.95
Pin-Out_Options:

Product Part Number: CC337MFS-SP
Connects any serial device with DTE DB25 to PC with DB25 serial port using a straight thru DB25 cable. This RS232 null modem adaptor converts a DTE DB25 to DCE DB25 port or vice versa. The added shielding provides data protection against EMI/RFI and slim design reduces bending & provides secure connection.

Select the Pin-Out Options you need:
  • Standard Pin-Out (Female-Male):1-1 / 2-3 / 3-2 / 4,5-8 / 6-20 / 7-7 / 8-4,5 / 20-6 / Shell-Shell
  • Full Pin-Out (Female-Male): 1-1 / 2-3 / 3-2 / 4-5 / 5-4 / 6-8,20 / 7-7 / 8,20-6 / Shell-Shell
  • Auto Pin-Out (Female-Male): 1-1 / 2-3 / 3-2 / 4,5-4,5 / 6,8,20- 6,8,20 / 7-7 / 11-12 / 12-11 / Shell-Shell
  • Special Pin-Out (Female-Male): 1-1 / 2-3 / 3-2 / 4-5 / 5-4 / 6,8,20 / 7-7 / 20-6,8 / Shell-Shell
