CORIOmaster® Mini Video Wall Processor
The CORIOmaster Mini video wall processor is a chassis with 5 Slots available for Audio-Video Modules plus 2 dedicated Universal DVI input. The Mini includes one CPU module and you select the optional modules that you require for your application.
The CORIOmaster Mini can be controlled with the CORIOgrapher software.

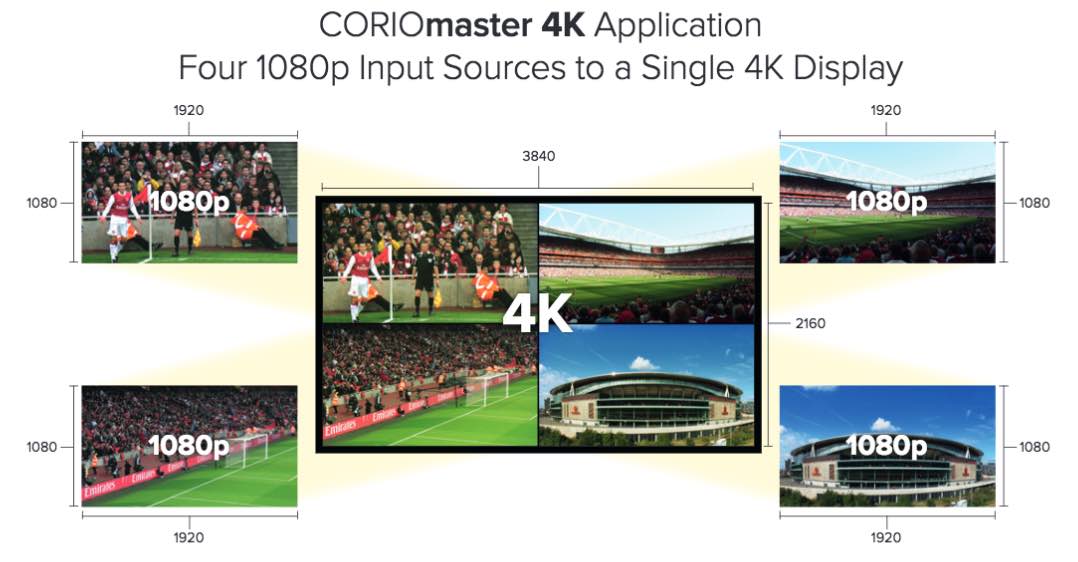

Example of four 1080 Input Sources to a Single 4K Display with the CORIOmaster Mini
Multiple windows can be used on a video wall to display the physical inputs into CORIOmaster. Windows can be sized to fit the wall or multiple windows added, resized and rotated 360 degrees on the video wall independent of the output rotation. There are 36 maximum system windows that can be used on up to 4 video walls. Each video wall can have a maximum of 14 windows depending on the source resolution, frame rate and size of window.
4K Input & Output Modules
The addition of 4K support consists of two new modules, both allowing resolutions up to 3840x2160:HDMI 4K30/60 input module
HDMI 4K30 scaling output module
CORIOgrapher v2, the control software for the CORIOmaster, CORIOmaster mini and CORIOmaster micro videowall processors now has included simple easy to use window and source transition effects. This new animation feature is controlled by presets in the system. Transition effects occur not only by selecting presets in CORIOgrapher v2 but also by third party control systems.
Video Processing Power
The CORIOmaster Mini can be controlled with the CORIOgrapher software.
Example of four 1080 Input Sources to a Single 4K Display with the CORIOmaster Mini
Multiple windows can be used on a video wall to display the physical inputs into CORIOmaster. Windows can be sized to fit the wall or multiple windows added, resized and rotated 360 degrees on the video wall independent of the output rotation. There are 36 maximum system windows that can be used on up to 4 video walls. Each video wall can have a maximum of 14 windows depending on the source resolution, frame rate and size of window.
4K Input & Output Modules
The addition of 4K support consists of two new modules, both allowing resolutions up to 3840x2160:
CORIOgrapher v2, the control software for the CORIOmaster, CORIOmaster mini and CORIOmaster micro videowall processors now has included simple easy to use window and source transition effects. This new animation feature is controlled by presets in the system. Transition effects occur not only by selecting presets in CORIOgrapher v2 but also by third party control systems.
Video Processing Power
- Parallel Processing Yes
- Architecture
- CORIO3 Video Processing Yes
- Real Time Video Quality Yes
- Up/Down/Cross Conversion Yes
- Number of Videowalls 4
- Display Size Compensation Yes, different sizes in videowalls
- Output Rotation Yes for any outputs and windows
- Projector Edge Blending Yes
- HDCP Key Handling Yes
Computer Input
- Digital DVI - Up to 10 via Universal DVI
- (HDMI & HDCP compliant)
- Analog - Up to 10 via Universal DVI
- Analog Format RGBHV, RGBS, RGsB, YPbPr
- Analog Sync TTL Level, 10KW, Pos or Neg
- RGB Level Range 0.5-2.0 Vp-p
- Scan Rate Detection Automatic
- Analog Signals PC to 1920x1080, HD to 1080p60
- DVI Signals PC to 1920x1200, HD to 1080p60
- Max Horizontal Scan Rate 150kHz
Computer Outputs
- DVI Signals - Up to 10 via DVI-I
- (HDMI & HDCP compliant)
- Analog - Up to 10 via DVI-I
- Analog format RGBHV, RGBS, RGsB, YPbPr
- R-G-B Level 0.7 Vp-p
- DVI Signals PC to 1920x1200, HD to 1080p60 w/EDID
- Analog Signals PC to 1920x1080, HD to 1080p60
- Vertical Refresh Rate Any to 250Hz
- Size and Position - User Adjustable
- Settings Memory - Non-Volatile
- Conversion Technology - Proprietary _ CORIO_3
- Color RGB 24-bit 4:4:4, SDI 20-bit 4:2:0
- Max. Sampling Rate 162MHz
- Firmware Memory Flash, Upgradable via download
- Video Comb Filter Adaptive
- Video Adjustments Contrast, Brightness, RGB Gamma
HD Video Resolutions supported (DVI, YPbPr, SDI)
- 720p (1280x720) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
- 1035i (1920x1035) 59.94, 60Hz
- 1080i (1920x1080) 50, 59.94, 60Hz
- 1080p (1920x1080) 23.98, 24, 25, 29.97, 30Hz
- 1080p (1920x1080) 50, 59.94, 60Hz
4K Video Input Resolutions supported (via HDMI)
- 3840x2160: 4:4:4 23.98/24/25/29.97/30Hz 8-bit
- 3840x2160: 4:2:0 50/59.94/60Hz 8-bit
4K Video Output Resolutions supported (via HDMI)
- 3840x2160: 4:4:4 23.98/24/25/29.97/30Hz 8-bit
Video Inputs
- Television Standards NTSC, PAL
- Composite Video Up to 10 via DVI
- YC (S-Video) Up to 10 via DVI
- YUV /YPbPr Up to 10 via DVI
- SD-SDI/HD-SDI Up to 16 via BNC
- SD-SDI/HD-SDI/3G-SDI Up to 8 via BNC
- HDBaseT Up to 8 via RJ45
- 4K Up to 8 via HDMI
Video Outputs
- YUV /YPbPr Up to 10 via DVI
- SD-SDI/HD-SDI/3G-SDI Up to 10 via BNC
- HDBasetT Up to 10 via RJ45
- 4K Up to 5 via HDMI
3G/HD/SD-SDI
- SMPTE259M-C 270Mbps < 0.1UI jitter
- (SD-SDI Video) 525/625Line
- SMPTE292M 1.485/1.4835Gbps < 0.2 UI jitter
- (HD-SDI Video) 720p, 1035i, 1080i, 1080p
- SMPTE424M 2.97/2.967Gbps < 0.3 UI jitter
- (3G-SDI Video) 1080p 60/59.94
Control Methods
- RS-232 via D9 Female Connector
- IP Interface RJ45 Connector
Warranty
- Limited Warranty 5 Years Parts and Labor
Regulatory Compliance
- Main unit FCC, CE, RoHS, UL
Mechanical
- Size (H x W x D) 1.75" x 19.0" x 13.25"
- 45 x 482 x 336mm
- Weight (Net) Approx. 15Kg (33 lbs.)
- (with redundant PSU option)
Environmental
- Operating Temperature 0⁰ to +40⁰ C (+32⁰ to +104⁰ F)
- Operating Humidity 10% to 85%, Non-condensing
- Storage Temperature -10⁰ to +70⁰ C (+14⁰ to +158⁰ F)
- Storage Humidity 10% to 85%, Non-condensing
- MTBF Approximately 50,000 hours
Power Requirement
- Internal Power Supply 110v to 240v auto-detecting
- Redundancy Optional Internal Hot Swap PSU
Accessories Included
- 1x Operations Manual
- 1x Power cable US, UK, Euro or AU
- Control Software USB Flash Drive
