CORIOmatrix mini Matrix Switch
The C3-310 CORIOmatrix mini scaling routhing switch can be configured to accept up to 10 Video inputs and/or 10 Video outputs. It gives you the ability to scale and switch practically any video format, including HDBaseT and SDI.
The C3-310 CORIOmatrix mini is a 1 RU chassis Matrix Switch. The chassis includes the CPU module and one fixed Universal DVI Input Module; there are five modular slots available for other (optional) input and output modules that allow you to configure your matrix for your application. It uses the CORIOgrapher firmware for video routing, switching and conversion. See the CORIOmatrix input/output modules.

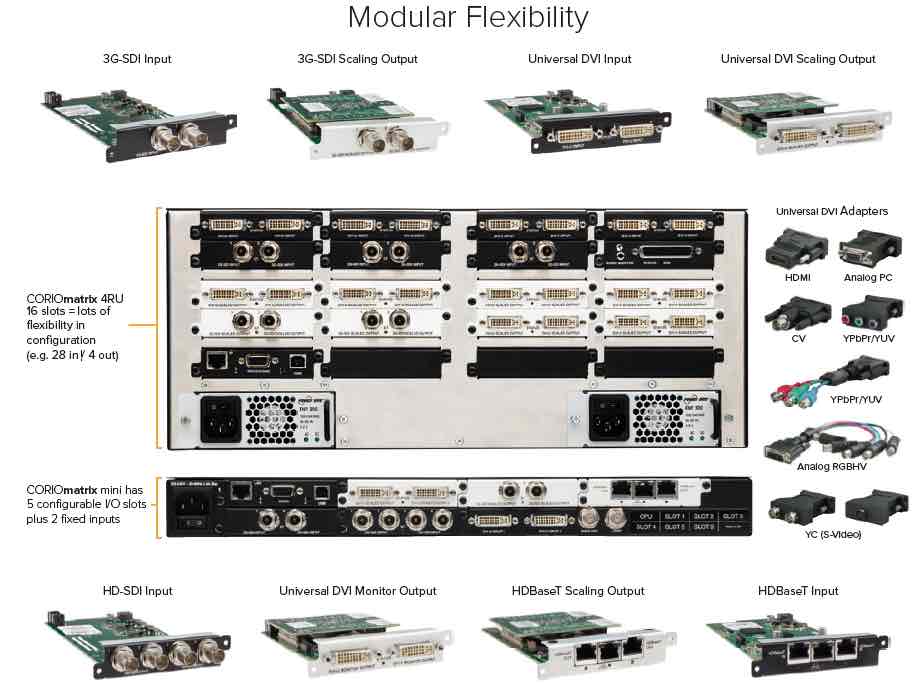

See the modular flexibility.
Click here for this example in PDF format with product links.
Click on the picture of the back of the C-310 chassis that shows one example of how the chassis can be filled with five additional (optional) Audio-Video modules inserted. The C-310 chassis includes one CPU module with RS-232 or IP control and one DVI-U Input module. The other five slots can be filled with other input/output modules.
Scale and Switch between the following signals:
HDMI
DVI-I
Analog YUV
YPbPr - Component Video
RGVHV - VGA signals
RGBs
RGsB
Y/C - S-Video
Composite Video
HDBaseT
SDI
The scaling 3G/HD/SD-SDI output module allows any input to be converted to SD-SDI, HD-SDI or 3G-SDI for output.

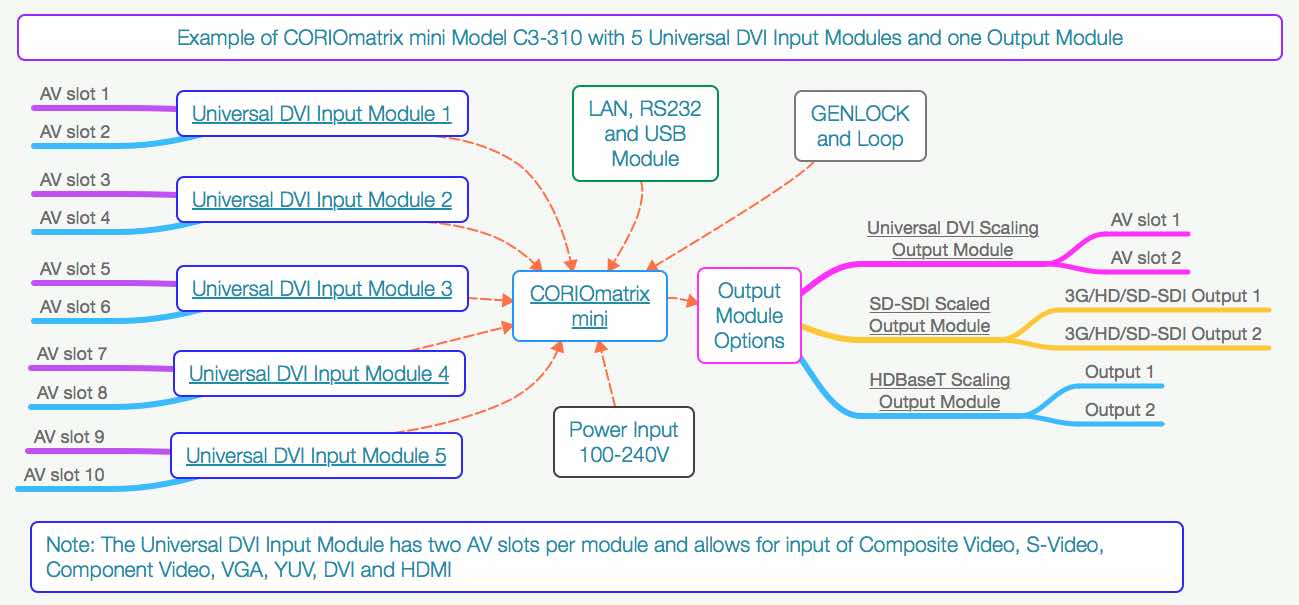

Example of CORIOmatrix mini with 10 AV inputs and one output slot that can be filled with different output module options.
Click here for this example in PDF format with product links.
The C3-310 CORIOmatrix mini is a 1 RU chassis Matrix Switch. The chassis includes the CPU module and one fixed Universal DVI Input Module; there are five modular slots available for other (optional) input and output modules that allow you to configure your matrix for your application. It uses the CORIOgrapher firmware for video routing, switching and conversion. See the CORIOmatrix input/output modules.
Click here for this example in PDF format with product links.
Click on the picture of the back of the C-310 chassis that shows one example of how the chassis can be filled with five additional (optional) Audio-Video modules inserted. The C-310 chassis includes one CPU module with RS-232 or IP control and one DVI-U Input module. The other five slots can be filled with other input/output modules.
Scale and Switch between the following signals:
Click here for this example in PDF format with product links.
