HDMI over IP H.264/H.265 PoE Transmitter- #500762-TX

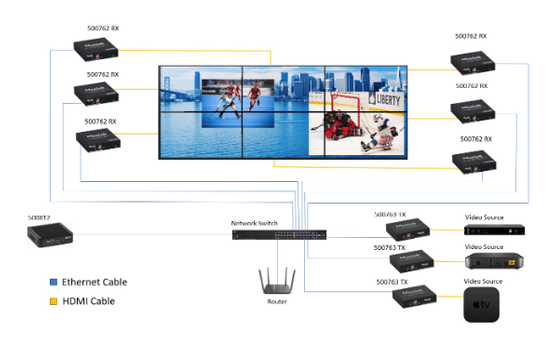

HDMI over IP H.264/H.265 PoE Transmitter. The pictures are of the front and rear of the transmitter and a typical application. The transmitter works with the receiver.
The HDMI over IP H.264/H.265 PoE Extender Transmitter and Receiver combination allows HDMI source and display equipment to be extended locally up to 330ft (100m) at up to 4K @ 60Hz resolution via Cat5e/6 cable in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations via a local Ethernet network, and supports Video Wall and Multiview capabilities in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems.
The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread-out throughout the globe.
The transmitter accepts a 1080p @ 60Hz video and streams the content to the Receiver, where the signal is up-scaled up to 4K @ 60Hz to be displayed on a 4K monitor. The Receiver also accepts H.264/H.265 video streams from other transmitting devices of up to 4K @ 60Hz. These devices support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.
The HDMI over IP H.264/H.265 PoE Extender Transmitter and Receiver combination allows HDMI source and display equipment to be extended locally up to 330ft (100m) at up to 4K @ 60Hz resolution via Cat5e/6 cable in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations via a local Ethernet network, and supports Video Wall and Multiview capabilities in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems.
The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread-out throughout the globe.
The transmitter accepts a 1080p @ 60Hz video and streams the content to the Receiver, where the signal is up-scaled up to 4K @ 60Hz to be displayed on a 4K monitor. The Receiver also accepts H.264/H.265 video streams from other transmitting devices of up to 4K @ 60Hz. These devices support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.
- Applications:
- Audio/Video Streaming over the Internet
- Commercial and residential AV systems
- Classroom projector systems
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical information systems
