Component Video (with RCA jacks) + IR Control

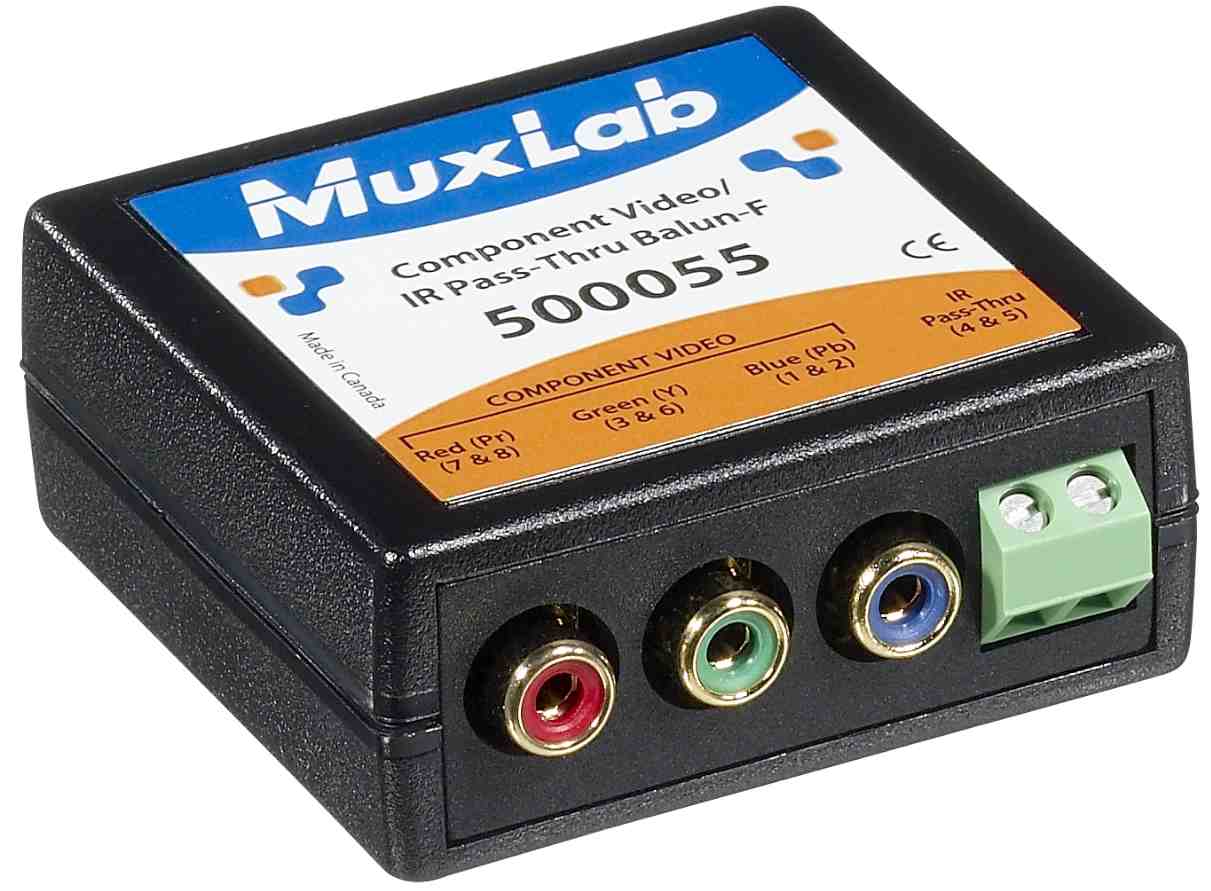

This Component Video + IR Pass-Thru Balun (Part no. 500055) allows one component video (YPbPr or RGB) signal and one IR emitter signal to be transmitted via one Category 5 (or higher) twisted pair cable for more cost-efficient cabling. Used in pairs or with 500054, as in the diagram below.
Features & Benefits
* Supports 480i, 480p, 720p, 1080i, 1080p
* Supports 480i/p up to 1,000 ft (305m) via Cat5
* Supports 720p/1080i/p up to 500 ft (152m) via Cat 5
* Color-coded RCA receptacles
* Supports IR-emitter pass-thru on fourth twisted pair; the emitter connects to the screw terminals
* Modular shielded RJ45 connector
Product 500055 can be used in pairs or with Product 500054.
Availability: ships same day.
