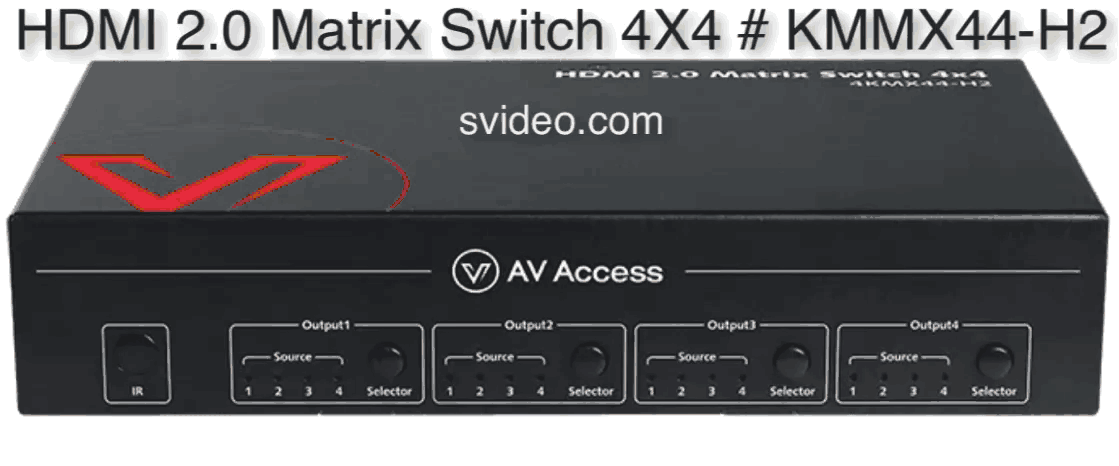

4X4 4K HDMI Matrix Switch with Downscaler, Audio Extraction, and IR Remote Control.
Excellent Image and Sound Quality: HDMI2.0/HDCP2.2 compliant; supports HDR10, Dolby Vision and HLG up to 4K@60 4:4:4 for all HDMI inputs and outputs; supports PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, etc.

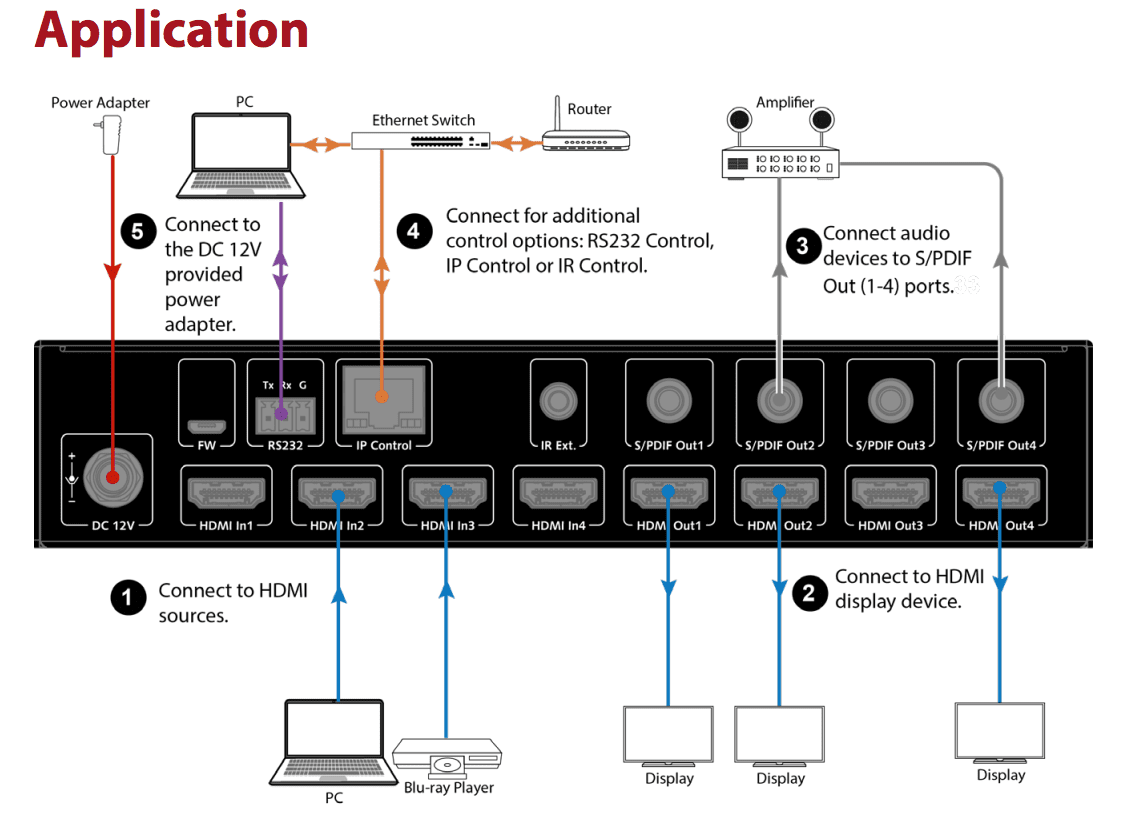

4X4 4K Matrix Switcher: Connect up to four HDMI sources and distribute any of them independently to any of the four connected outputs.
Audio De-Embedding: Extract the audio sources from each HDMI output and connect to your audio system via the S/PDIF audio output ports.
4K-to-1080P Downscaler: Route your 4K video sources to 4K displays and 1080P displays simultaneously via downscaling.
Four Ways to Switch: Easily switch sources via the front buttons, IR remote, web UI or RS-232.
Video Resolution: 4K@60Hz - 4:4:44K@60Hz - 4:4:4
In the Box:
1 x Matrix
1 x Power Adapter (DC 12V 2A)
1 x AC Power Cord with US Pins
1 x IR Remote
1 x IR Receiver
1 x Phoenix Male Connector (3.5mm, 3-Pin)
2 x Mounting Brackets (with Screws)
1 x User Manual
Product Dimensions:215mm x 42mm x 120.2mm/8.46 x 1.65 x 4.73
