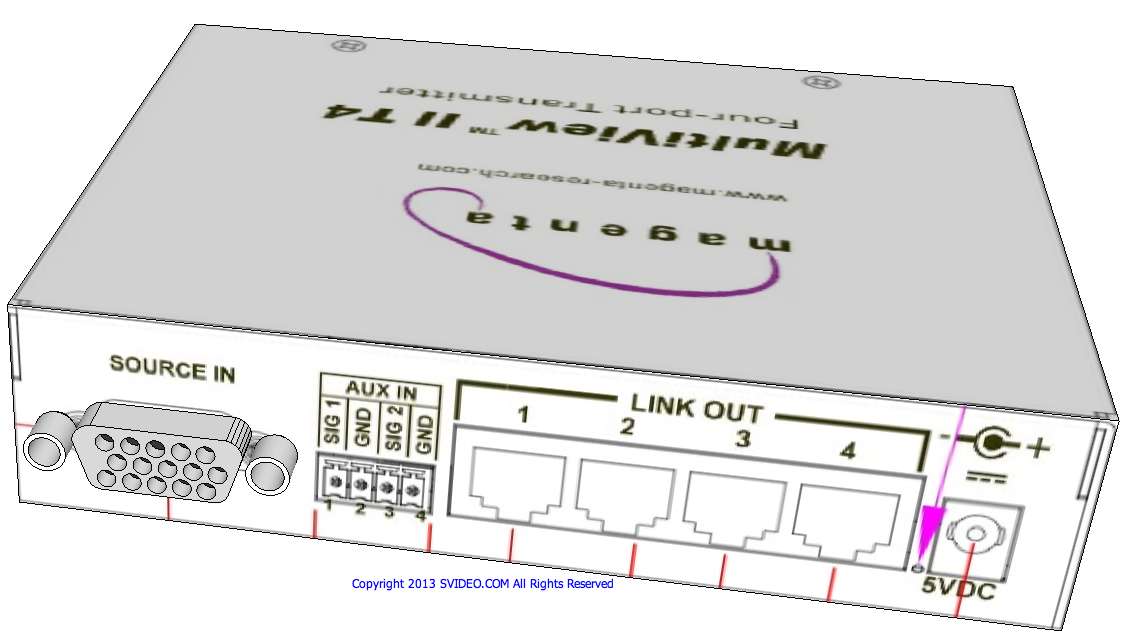

MultiView II T4-A Four Port Transmitter
MultiView II T4-A Four Port Transmitter can be used to distribute Composite Video, S-Video, Component Video, YUV, RGB, RGBh, or RGBHV (VGA) plus summed audio, S/PDIF or Simplex RS-232.
The T4-A Four Port Transmitter can be connected to MultiView receivers using Category 5, 5e and 6 Shielded Twisted Pair (STP) or Unshielded Twisted-Pair (UTP).
The transmitter has four "Link Out" ports to connect to one or four receivers usinhg STP or UTP. If you use the "DP" receivers in a daisy chain you can send the same signal to up to 48 displays. In addition, the local output port of the transmitter can also be cascaded to additional T4 transmitters or other transmitters.
Download a couple of examples of connections with the T4-A Four Port Transmitter in PDF format.
The T4-A Four Port Transmitter can be connected to MultiView receivers using Category 5, 5e and 6 Shielded Twisted Pair (STP) or Unshielded Twisted-Pair (UTP).
The transmitter has four "Link Out" ports to connect to one or four receivers usinhg STP or UTP. If you use the "DP" receivers in a daisy chain you can send the same signal to up to 48 displays. In addition, the local output port of the transmitter can also be cascaded to additional T4 transmitters or other transmitters.
Download a couple of examples of connections with the T4-A Four Port Transmitter in PDF format.
