MultiView II T4 AS Four Port Transmitter
Extend analog video and audio at 1920x1200 resolution up to 1200 feet to up to 48 receivers. Contact us if you need to distribute the signal longer distances.
The T4 Transmitter is available in MultiView-A and MultiView-S functionality and is compatible with –A and -S transmitters, receivers, distribution amplifiers and matrix switchers. When used with the appropriate receivers, the T4 delivers the world’s longest UTP extension capability at the highest resolution—1920x1200 at 2000ft/609m.

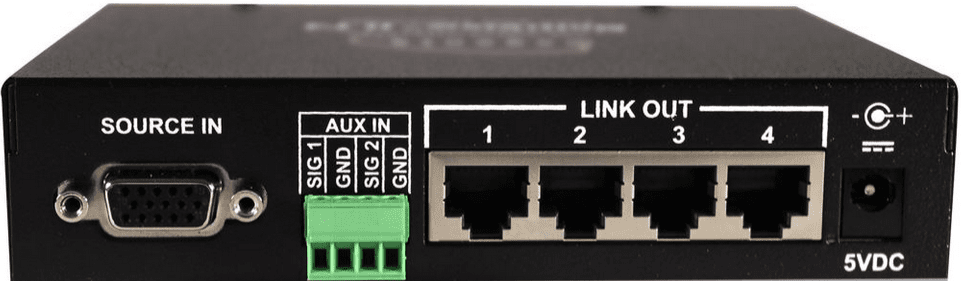

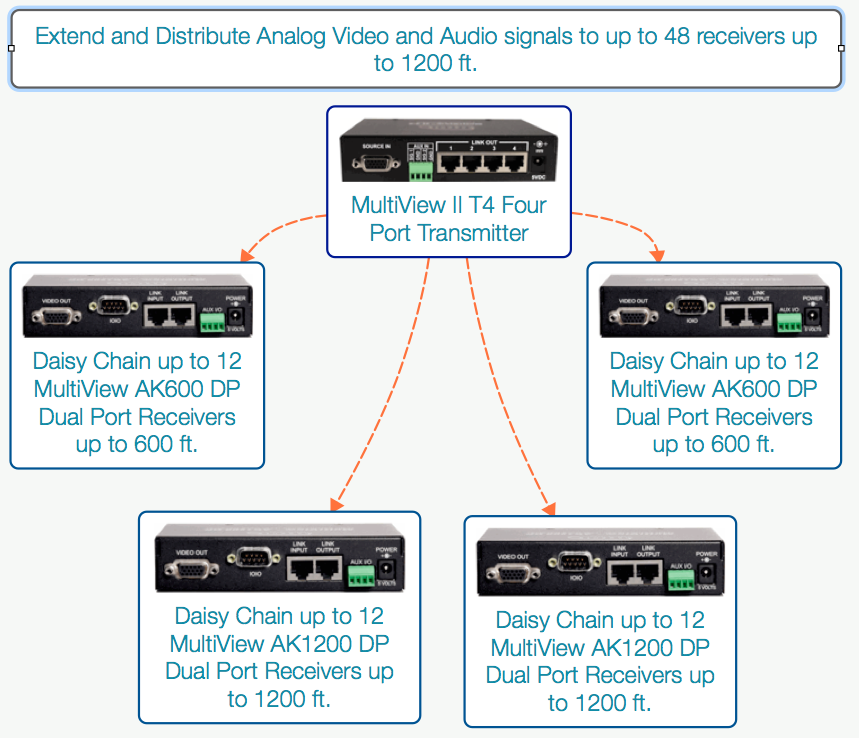

The MultiView II T4 transmitter has 4 UTP output ports, which can be connected to 4 receivers, or 4 daisy chains of up to 12 receivers each, for a total of 48 receivers. Additional outputs can be enabled by cascading the local output port to additional T4 or other transmitters. See example below:

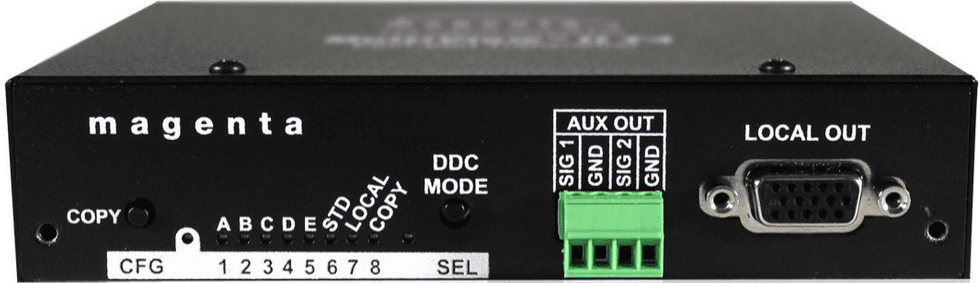

Totally redesigned, the MultiView II T4 now features DDC/EDID modes of operation that ensure replicating crisp 1080p video at 2,000 feet is easier than ever before. Three DDC modes are included—Magenta Magic, LOCAL (stores DDC from a local display) and COPY (stores DDC info from any previously connected display).
Also new are a series of external buttons that grant users total control over RepliSync modes, fourth-pair configurations (audio or serial) and AC/DC coupling options.
