Mondo Matrix III 32x48 Switch
Mondo Matrix III 32x48 switch consists of three 32x16 frames resulting a a 12U high rack.

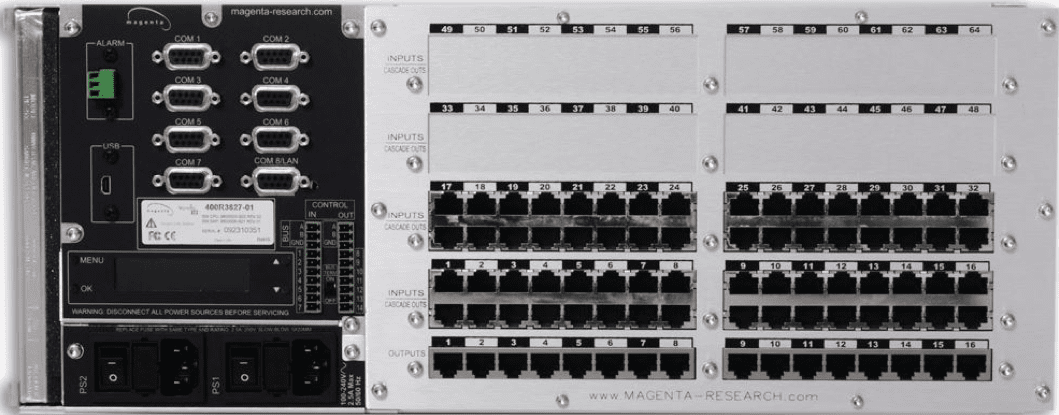

The picture above shows a "frame" with 32 inputs and 16 outputs. Each input also has an "Input Cascade Output" to pass-through the signal to connect to a local receiver or to cascade to another frame. Each frame has 16 outputs.

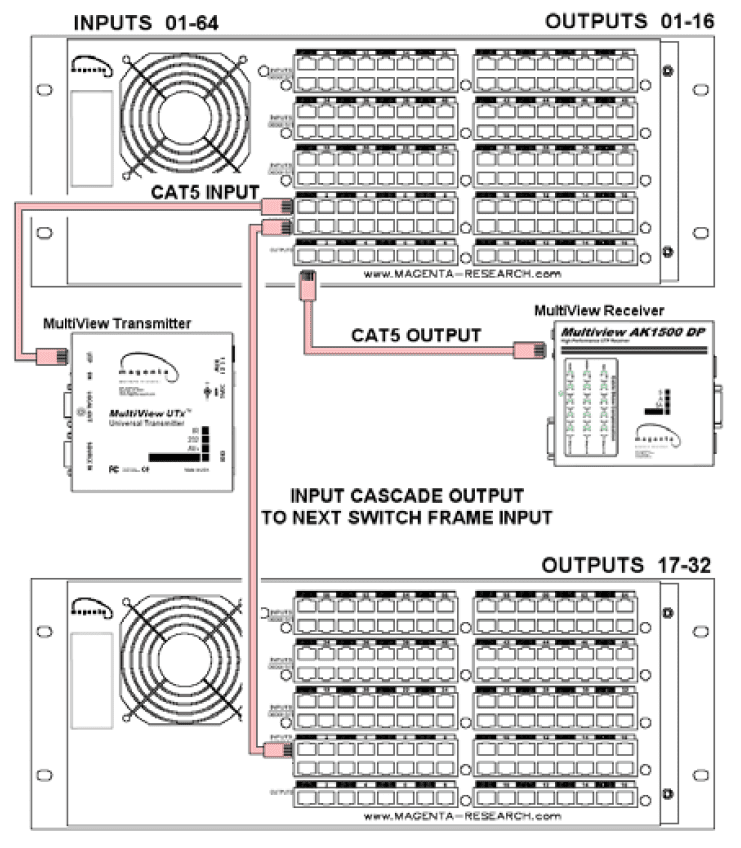

The diagram shows how the "input cascade output" can be used to connect frames together in order to increase the outputs by 16. To create a 32x48 switch you would connect three 32x16 switches via the "Input Cascade Output" connection.
Download a PDF of the Mondo Matrix Specification Sheet.
Download a price list of the Multiview Price List with links to the products.
The picture above shows a "frame" with 32 inputs and 16 outputs. Each input also has an "Input Cascade Output" to pass-through the signal to connect to a local receiver or to cascade to another frame. Each frame has 16 outputs.
The diagram shows how the "input cascade output" can be used to connect frames together in order to increase the outputs by 16. To create a 32x48 switch you would connect three 32x16 switches via the "Input Cascade Output" connection.
