Mondo Matrix III 32 by 16 Switch
Mondo Matrix III 32 by 16 Switch consisting of one frame that is 4U high.
The picture above shows an example of how one matrix switch "frame" can be configured with 32 inputs and 16 outputs. Each input also has an "Input Cascade Output" to pass-through the signal to connect to a local receiver or to cascade to another frame. Each frame has 16 outputs.

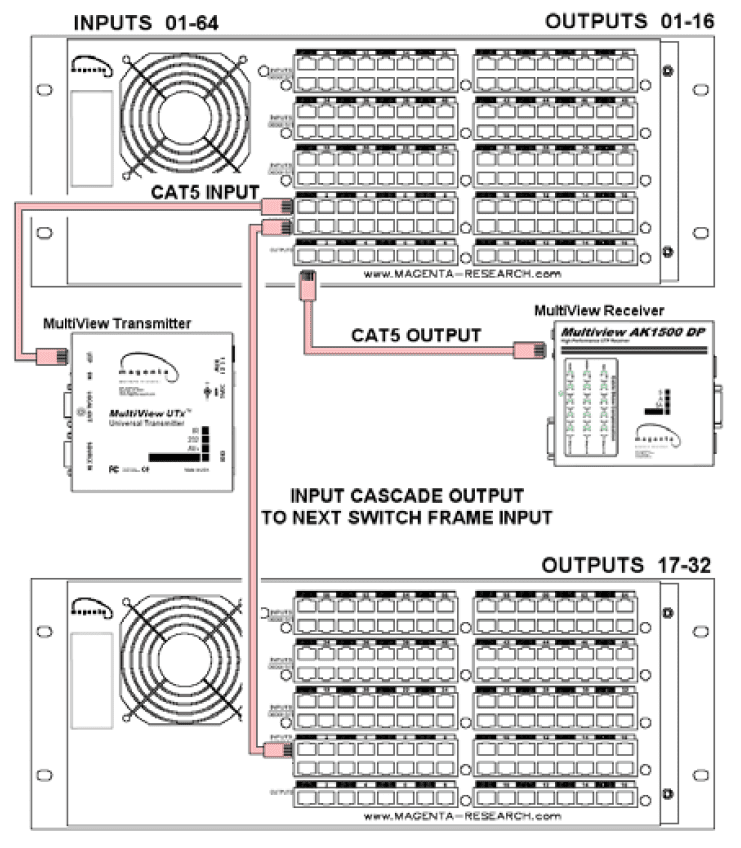

The diagram shows how the "input cascade output" can be used to connect two frames together in order to increase the outputs by 16. Frames can be connected via the "input cascade output" to increase the outputs by 16 per frame.
Download a PDF of the Mondo Matrix Specification Sheet.
Download a price list of the Multiview Price List with links to the products.
