CCTV LongReach II Active Receiver

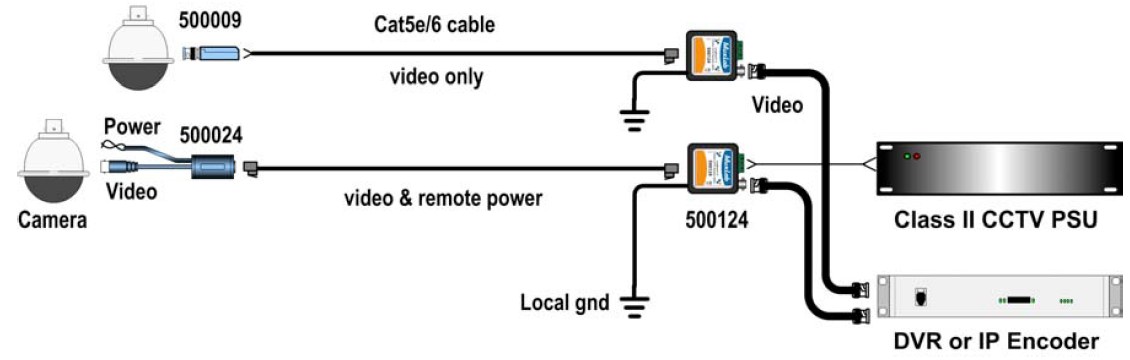

Examples of two applications:
Target Market: CCTV specialists, installers, consultants, resellers, integrators, distributors.
Positioning: Next generation active CCTV receiver balun with Auto-Gain Control and Power/Video/PTZ Combiner.
Function: The LongReach II Active CCTV Receiver Balun (500124) provides extended distance between the CCTV camera and the DVR via Cat5e/6 cable. The product features Auto Gain Control (AGC) and supports up to 5,000 ft (1.5 km) via Cat5e/6 cable when used in conjunction with MuxLab's full range of passive CCTV baluns. The LongReach II also allows video, remote power and 2-wire PTZ control to be combined over Cat5e/6 cable and features ground loop isolation (GLI) for optimum video transmission.
Features:
Up to 5,000 feet (1.5 km) with passive balun at camera
Up to 7,000 ft (2.1km) with 500100/101 at camera
Video, power and PTZ over one Cat5e/6
Auto Gain Control (AGC)
Auto Polarity Correction
Ground Loop Isolation (GLI)
LED diagnostics
Supports MuxLab mounting accessories (500900/902/910/915)
Applications
Casinos, correctional institutions, schools, campus, industrial, traffic monitoring, retail.
